3.2 Right View

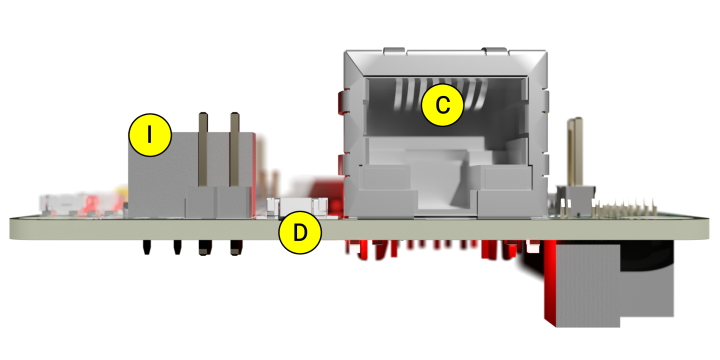

This is the right hand side view of the PiRoute.


Ethernet RJ45 socket and status indicator LEDs. Provides network access to this PiRoute device over 100 Mbps Ethernet. The left LED (green) shows activity and the right LED (amber) shows connection state.


Status indicator and PiRoute reset/wake-up button. The LED will flash every now and then if the PiRoute is active, and will be illuminated continuously if sleeping. The LED will blink quickly during any network or Bluetooth communication.


Bluetooth serial module port connector for HC-06, JDY-31 or HC-05. Note, the HC-05 works at 9600 BAUD only. Note the orientation with the 3.3V power on the far right of the dongle.
